Ship and Yacht Reverse Engineering
Ship and yacht reverse engineering involves digitally capturing an existing boat, ship, or component using 3D laser scanning technology and then creating manufacturable engineering models from the scanned data.
Applications:
Ship & Yacht Maintenance and Repair
Hull, deck, and superstructure measurements
Refitting (renovation) projects
Modification and revision works
Production of sheet metal, composite, and aluminum parts
Custom Yacht Manufacturing
Exact replication of an existing boat
Personalized design modifications
How It Works with TOLERANCE Software

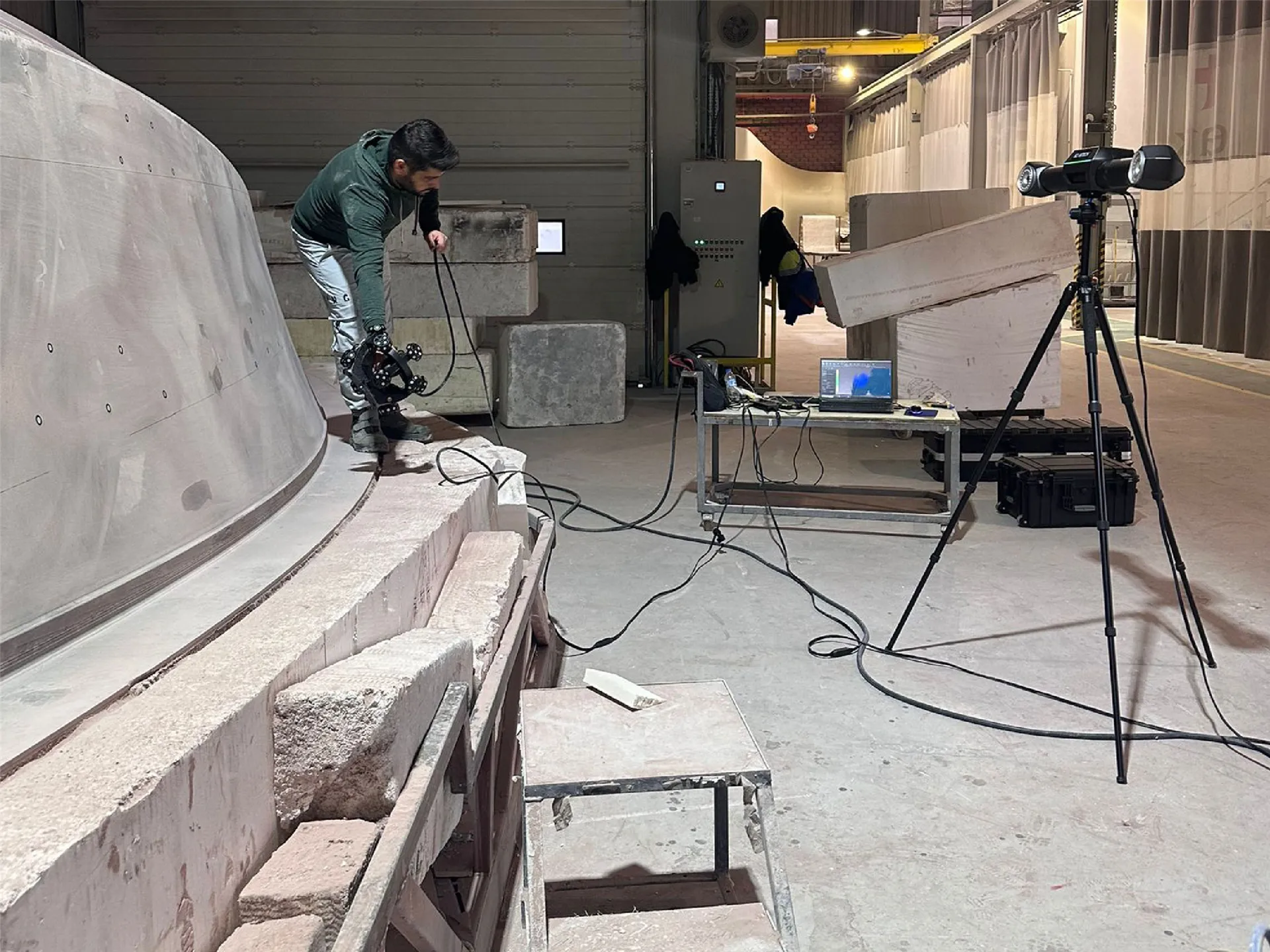

The ship or yacht is scanned using a 3D laser scanner.
A point cloud consisting of millions of points is generated.
From this data, the following are created:

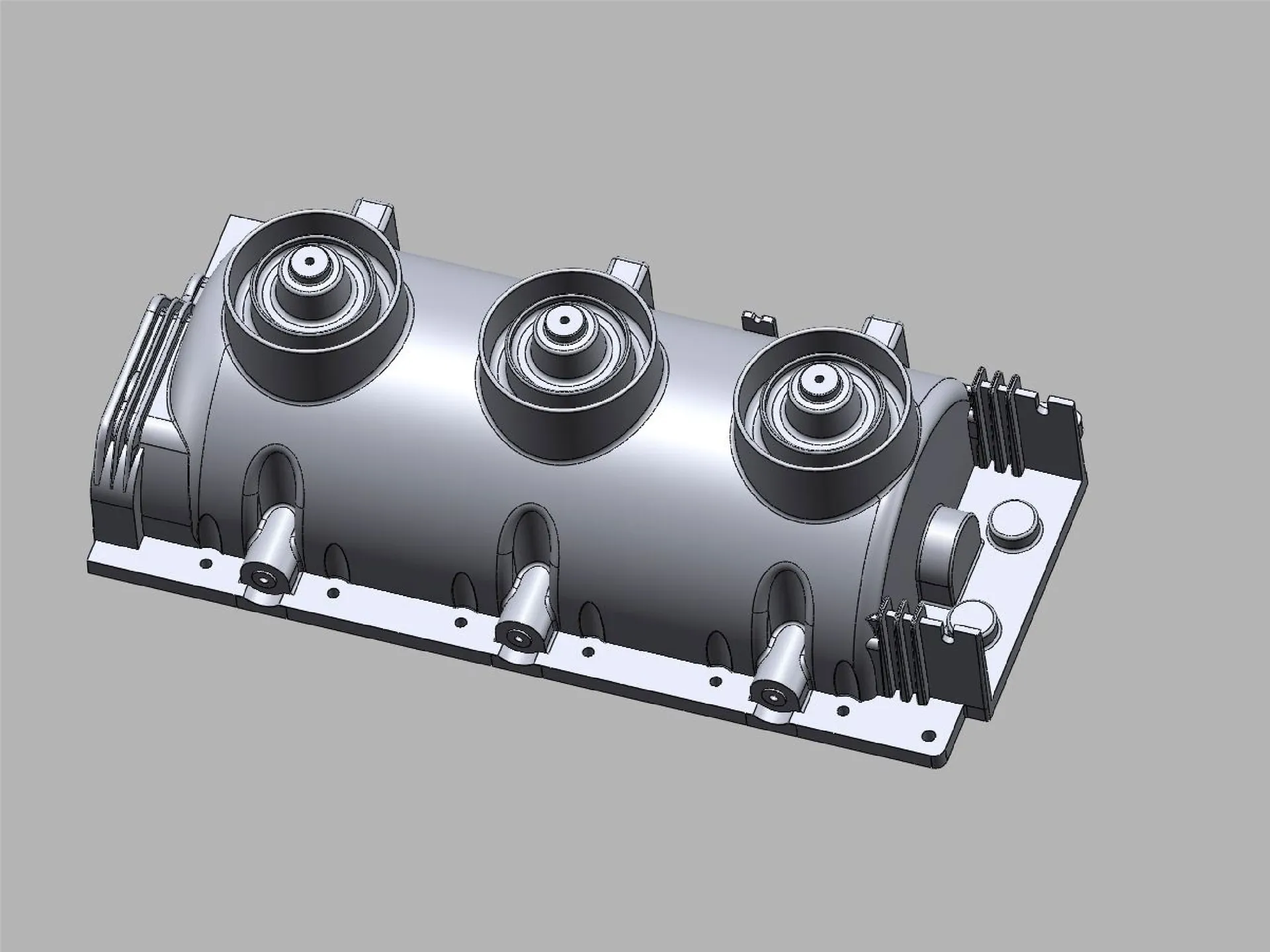

3D CAD surface model
Solid model
Manufacturing drawings
The model is then prepared for production processes such as:
CNC machining
Laser cutting
Mold production
Composite manufacturing
